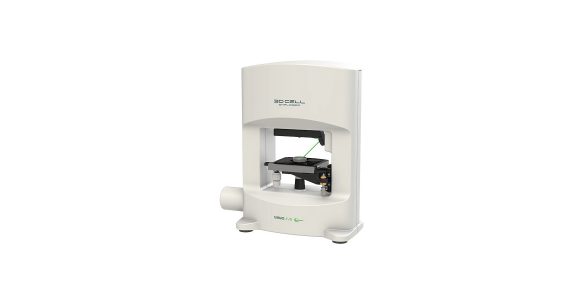

NANOLIVE 3D Cell Explorer

NANOLIVE 3D Cell Explorer

A revolutionary Tomographic Microscope to look instantly inside living cells in 3D!



The 3D Cell Explorer is a high speed, high resolution and non-invasive microscope that can look deep inside biological systems. This allows you to record stunning 3D images of entire cells and tissue slices in just seconds and with a higher resolution than any conventional microscope on the market. It is the result of years of hard work, innovation and an obsession to detail. With the 3D Cell Explorer, researchers, students and medical doctors can directly experience what happens inside the living cell in real time!

This 3D Cell Explorer measures approximately 38 x 45 x 17 cm and has a maximum weight of 8 kg (17.64 lbs)



A Self-Adjusting, Holographic & Tomographic Microscope



Our tomographic holographic 3D microscope is the result of years of work and development. Through a combination of holography and rotational scanning the system detects changes to light as it propagates through the cell, i.e. the 4D distribution of the physical refractive index (RI) within the cell.

The sample is positioned between a high-numerical-aperture air objective beneath the sample and a rotational illumination arm above. Green light (520 nm) from a laser diode is split into sample and reference beams. The sample is illuminated with a laser beam inclined at 45° which rotates around the sample 360°. A series of holograms is recorded on a digital camera by combining the beam that has passed through the sample with the reference beam.

A Self-Adjusting, Holographic & Tomographic Microscope


 Unibody Concept

The revolutionary intuition, at Nanolive, was to reduce structural complexity to one unique basic component – a unibody industrially derived from a single piece of aluminum. Thanks to this simple design, the 3D Cell Explorer is thin, light, simple and stable.

Unibody Concept




Self-Adjusting

To achieve optimal results for every measurement, the optics of our microscope are completely self-adjusting on sample conditions (e.g. media evaporation).

Self-Adjusting


Low Power Laser

Our 3D Cell Explorer uses a low power laser (Laser class 1: 0.2mW/mm2): No goggles required.

Low Power Laser


Fast Acquisition

A full 3D image of your cell will be loaded to your screen within two seconds.

Fast Acquisition


Long Term Observation

The microscope stage is perfectly compatible with classical top stage incubators. You are able to observe your cell’s behavior in their natural environment (5% CO2 & 37°C).

Long Term Observation


>> View Technical Specifications
